Lightweighting Achieved Through Design Optimization and High-Strength Ductile Iron

Download Case Study

Rising fuel efficiency and emissions standards are driving an increased demand for lightweight automotive components. While aluminum materials are commonly specified, Waupaca Foundry in collaboration with Hitachi Metals America have the capabilities through design optimization and high-strength ductile iron to meet weight reduction goals while generating significant cost savings and a stronger component.

Situation

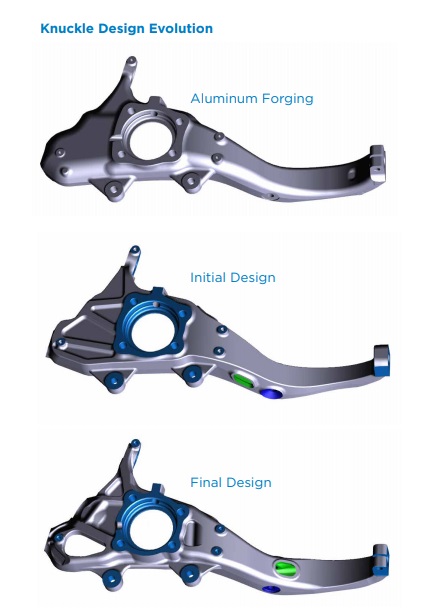

design evolution of a steering knuckle by Waupaca Foundry

To meet its lightweighting objectives initially, an automotive OEM selected a 13.34 pound (6.05 kg) aluminum forging for its front steering knuckle over a 23.81 pound (10.80 kg) ductile iron casting. Although the decision for an aluminum component achieved the weight reduction goal, it resulted in a considerable cost increase when compared to a ductile iron casting.

After the initial launch of the aluminum component, the OEM asked Hitachi Metals to explore a lightweight ductile iron casting for the knuckle to replace the aluminum component. To be successful, the ductile iron casting solution needed (or must) weigh 17.6 pounds (7.98 kg).

The front steering knuckle connects various suspension and brake components to the wheel-end assembly. Key requirements for fit and function included:

  • Provide secure mounting to 10 different suspension and brake parts.
  • Avoid interference with other adjacent components.
  • Strengthen to handle a variety of extreme driving events.
  • Ensure reliability for a minimum of 10 years under severe driving conditions.
  • Prevent brake noise and deliver desired handling and ride.
  • Provide clearance to surrounding parts in all possible driving situations.
Solution

Hitachi Metals design engineers developed an iron casting solution to meet the key requirements by redesigning and optimizing the shape of the knuckle using high-strength ductile iron.

Testing verified the parts strength, durability and stiffness. Continued optimization of the ductile iron casting achieved the lightweight target of 17.6 pounds (7.98 kg).

Win Win

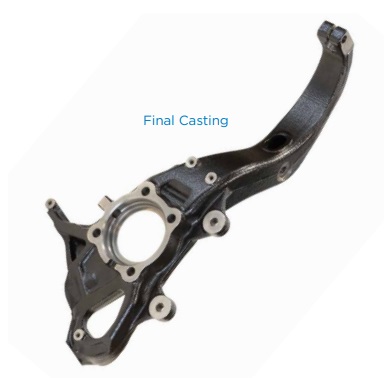

final lightweighted steering knuckle by Waupaca Foundry

The new design not only fit into the components existing space, but it also met all of the customer’s requirements including stiffness, strength and durability. The weight of the optimized knuckle design was 16.25 pounds (7.37 kg), under the targeted goal of 17.6 pounds (7.98 kg). For the knuckle, the weight difference between the optimized ductile iron casting and the aluminum forging was reduced to only 2.91 pounds (1.32 kg).

In addition, the OEM realized a 40% cost savings and received a 20% stronger component.

  • Ductile iron knuckle is 20% stronger and has 25% higher stiffness vs. aluminum solution.
  • Achieved 30% weight reduction over the original ductile iron design.
  • Narrowed weight difference between the ductile iron casting vs. aluminum forging solution to 2.91 pounds (1.32 kg).
  • Realized a 40% cost savings per iron casting.
